UPS19605 100mm x 3.6mtr IMPA 81 23 66

Model: UPS19605

Description

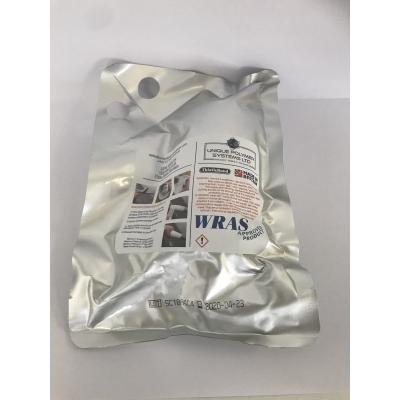

UPS 19601/3/4/5/6 PR Emergency Pipe Repair Bandage.

UPS 19601/3/4/5/6 PR Emergency Pipe Repair Bandage is a high performance rapid curing mositure activated repair bandage, specifically developed for the repair of leaking pipes, which is activated by immersion in water. UPS 19601/3/4/5/6 PR is ideal for pipe repair to low pressure systems. As a general guide, a repair built up to a thickness of approximately 12mm (0.5") will withstand a maximum service pressure of 10 bar (150 psi). High pressures, up to 50 bar, can be achieved by first applying a 'plug' of UPS 19060 SG Stick Grade Metal as described herein, always at users discretion.

Features & Benefits
◾Easy to apply, requiring no secial tools or equipment.
◾Specially selected woven polyester fabric impregnated with a polyurethane resin which is activated by immersion in water.
◾Ideal for repair pipes operating at low pressures.
◾Designed for use for repairs up to 500mm diameter.
◾Can be used on a wide variety of surfaces, including all metals and many types of plastics.

 Key Technical Information
Useable Life (20°C)
2-3 minutes

Initial Set
5 minutes

Full Mechanical Cure
30 minutes

Maximum Heat Resistance
270°C (500°F)


Shore D Hardness

82

(ASTM D2240)

Maximum Operating Temperatures
80°C (176°F) - Dry

50°C (122°F) - Wet


UPS Emergency Bandage Repair Information

Chemical Resistance Chart

Custom Commodity HS Code 39073000

Country of Origin United Kingdom

Datasheet:

UPS 19601 3 4 5 6 PR TDS UK V1 Bradechem

SDS:

UPS 19601 PR SERIES SDS Bradechem4
